Tipper

This object can be used to store tipper (ZTEM) surveys - a natural-source geophysical method. Data are provided in the frequency-domain as point source measurements of tipper data.

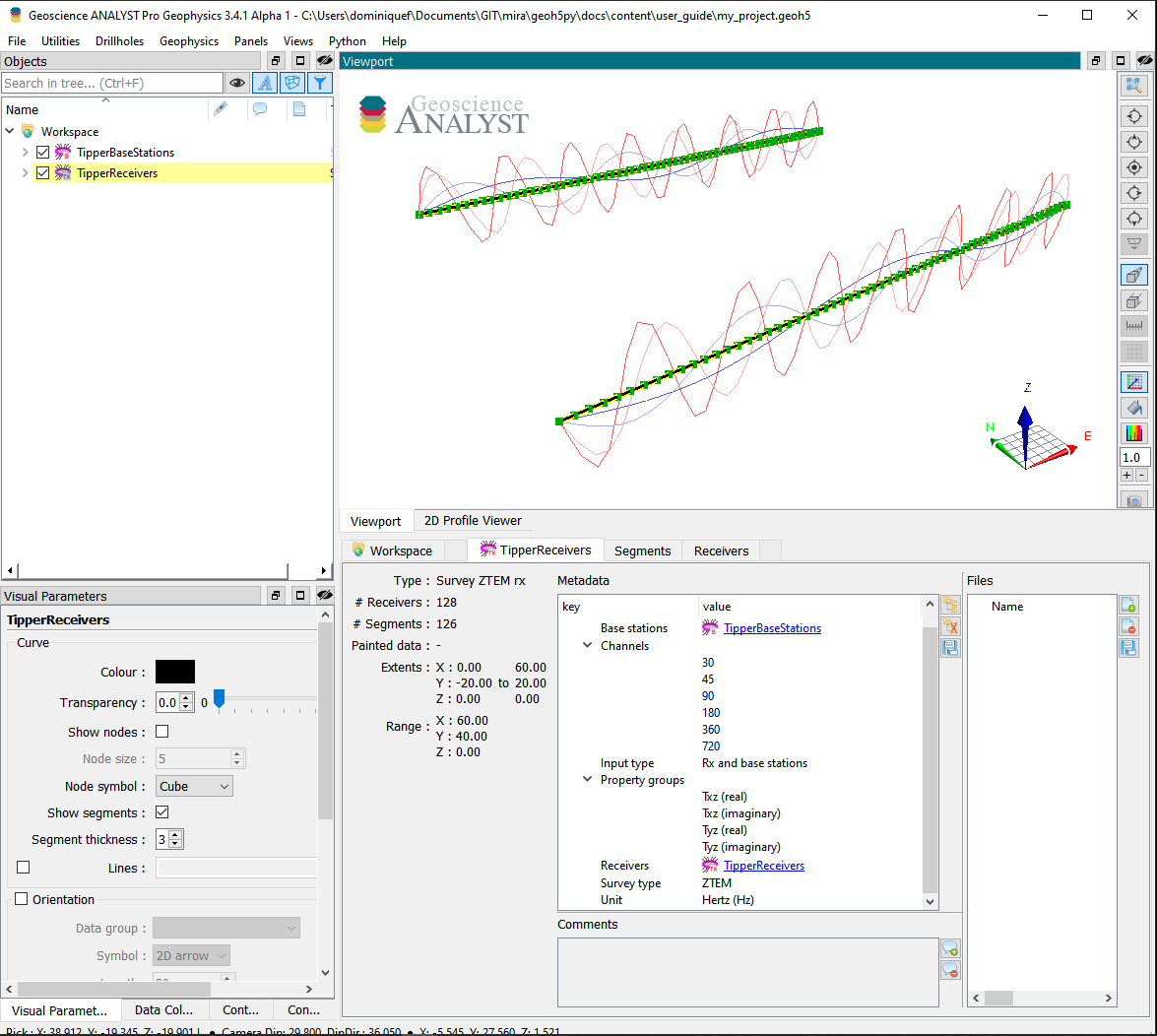

The following example shows how to generate a tipper survey with associated data stored in geoh5 format and accessible from Geoscience ANALYST.

import numpy as np
from geoh5py.workspace import Workspace
from geoh5py.objects import TipperReceivers, TipperBaseStations

# Create a new project
workspace = Workspace("my_project.geoh5")

# Define the pole locations
n_stations = 64
n_lines = 2
x_loc, y_loc = np.meshgrid(np.linspace(0, 60, n_stations), np.linspace(-20, 20., n_lines))
vertices = np.c_[x_loc.ravel(), y_loc.ravel(), np.zeros_like(x_loc).ravel()]

# Assign a line ID to the poles (vertices)
parts = np.kron(np.arange(n_lines), np.ones(n_stations)).astype('int')

# Create the survey from vertices
receivers = TipperReceivers.create(workspace, vertices=vertices, parts=parts)
base = TipperBaseStations.create(workspace, vertices=vertices)

We have so far created two seperate entities, one for the receiver locations and another for the base station(s). In order to finalize the survey, the association must be made between the two entities:

receivers.base_station = base

or equivalently

base.receivers = receivers

Only one of the two options above is needed.

Metadata

Along with the TipperReceivers, the metadata contains all the necessary information to define the geophysical experiment.

receivers.metadata

{'EM Dataset': {'Base stations': UUID('6b884ca9-e46a-439f-9cb8-ece1fea10ae8'),
  'Channels': [],
  'Input type': 'Rx and base stations',
  'Property groups': [],
  'Receivers': UUID('b3fe1171-2c7d-4a5e-a514-60c56120f3ed'),
  'Survey type': 'ZTEM',
  'Unit': 'Hertz (Hz)'}}

Channels

List of frequencies at which the data are provided.

receivers.channels = [30., 45., 90., 180., 360., 720.]

Input type

Generic label used in the geoh5 standard for all EM survey entities. Restricted to Rx and base station in the case of a tipper survey.

Property groups

List of PropertyGroups defining the various data components (e.g. Txz (real), Tyz (imag), …). It is not required to supply all components of the impedence tensor, but it is expected that each component contains a list of data channels of length and in the same order as the Channels (one Data per frequency).

The class method add_components_data can help users add data from nested dictionaries. Below is an example using four components:

# Arbitrary data generator using sine functions
data_fun = lambda c, f: (c+1.) * (f+1.) * np.sin(f * np.pi * (x_loc * y_loc).ravel() / 400.)

# Create a nested dictionary of component and frequency data.
data = {
    component : {
        f"{component}_{freq}": {"values": data_fun(cc, ff)} for ff, freq in enumerate(receivers.channels)
    } for cc, component in enumerate([
        "Txz (real)", "Txz (imaginary)",
        "Tyz (real)", "Tyz (imaginary)",
    ])
}

receivers.add_components_data(data)

[<geoh5py.groups.property_group.PropertyGroup at 0x7f14bf409c60>,
 <geoh5py.groups.property_group.PropertyGroup at 0x7f14bf40a4a0>,
 <geoh5py.groups.property_group.PropertyGroup at 0x7f14bf40ac80>,
 <geoh5py.groups.property_group.PropertyGroup at 0x7f14bf40bd30>]

Metadata are updated immediately to reflect the addition of components:

receivers.metadata

{'EM Dataset': {'Base stations': UUID('6b884ca9-e46a-439f-9cb8-ece1fea10ae8'),
  'Channels': [30.0, 45.0, 90.0, 180.0, 360.0, 720.0],
  'Input type': 'Rx and base stations',
  'Property groups': ['Txz (real)',
   'Txz (imaginary)',
   'Tyz (real)',
   'Tyz (imaginary)'],
  'Receivers': UUID('b3fe1171-2c7d-4a5e-a514-60c56120f3ed'),
  'Survey type': 'ZTEM',
  'Unit': 'Hertz (Hz)'}}

Data channels associated with each component can be quickly accessed through the BaseEMSurvey.components property:

receivers.components

{'Txz (real)': [<geoh5py.data.float_data.FloatData at 0x7f14e839f280>,
  <geoh5py.data.float_data.FloatData at 0x7f14e839f5e0>,
  <geoh5py.data.float_data.FloatData at 0x7f14bf409810>,
  <geoh5py.data.float_data.FloatData at 0x7f14bf409b70>,
  <geoh5py.data.float_data.FloatData at 0x7f14bf409d20>,
  <geoh5py.data.float_data.FloatData at 0x7f14bf409d50>],
 'Txz (imaginary)': [<geoh5py.data.float_data.FloatData at 0x7f14bf409ed0>,
  <geoh5py.data.float_data.FloatData at 0x7f14bf409570>,
  <geoh5py.data.float_data.FloatData at 0x7f14bf409030>,
  <geoh5py.data.float_data.FloatData at 0x7f14bf40a230>,
  <geoh5py.data.float_data.FloatData at 0x7f14bf409cc0>,
  <geoh5py.data.float_data.FloatData at 0x7f14bf40a320>],
 'Tyz (real)': [<geoh5py.data.float_data.FloatData at 0x7f14bf40a5c0>,
  <geoh5py.data.float_data.FloatData at 0x7f14bf40a980>,
  <geoh5py.data.float_data.FloatData at 0x7f14bf40a7a0>,
  <geoh5py.data.float_data.FloatData at 0x7f14bf4095a0>,
  <geoh5py.data.float_data.FloatData at 0x7f14bf40a440>,
  <geoh5py.data.float_data.FloatData at 0x7f14bf40ab00>],
 'Tyz (imaginary)': [<geoh5py.data.float_data.FloatData at 0x7f14bf40ada0>,
  <geoh5py.data.float_data.FloatData at 0x7f14bf40b190>,
  <geoh5py.data.float_data.FloatData at 0x7f14bf40afb0>,
  <geoh5py.data.float_data.FloatData at 0x7f14bf40bac0>,
  <geoh5py.data.float_data.FloatData at 0x7f14bf40ac20>,
  <geoh5py.data.float_data.FloatData at 0x7f14bf40bbb0>]}

Receivers

Generic label used in the geoh5 standard for EM survey to identify the TipperReceivers entity.

Base stations

Generic label used in the geoh5 standard for EM survey to identify the TipperBaseStations entity.

Survey type

Label identifier for ZTEM survey type.

Unit

Units for frequency sampling of the data: Hertz (Hz), KiloHertz (kHz), MegaHertz (MHz) or Gigahertz (GHz).

workspace.finalize()
